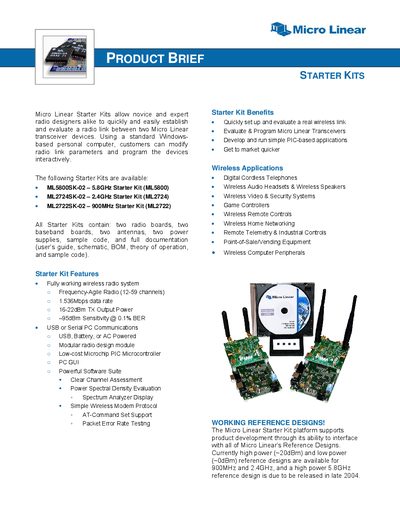

Micro Linear Starter Kits are starter kits designed for beginners and expert radio designers to establish and evaluate a radio link between two Micro Linear transceiver devices. The kits offer features such as frequency agility, high data rate, and strong output power, and provide USB or serial PC communication capabilities.
Micro Linear Starter Kits enable designers to quickly set up and evaluate a wireless link between two Micro Linear transceiver devices using a standard Windows PC. Each kit includes two radio boards, baseband boards, antennas, power supplies, sample code and full documentation such as a user's guide, schematic, BOM, theory of operation, and sample code.
The kits support multiple frequency bands (900 MHz, 2.4 GHz, 5.8 GHz) with up to 59 agile channels, 1.536 Mbps data rate, and transmit powers up to 22 dBm. They are suited for applications ranging from digital cordless phones and wireless audio to remote telemetry and industrial controls.
| RF Carrier Frequency | 902‑928 MHz, 2400‑2483 MHz, 5725‑5850 MHz |
|---|---|
| Modulation | 2FSK |
| Raw Data Rate | 1.536 Mbps |
| Number of Channels | 12, 40, 59 |
| Transmit Power | 16‑22 dBm |
The kits support 902‑928 MHz, 2400‑2483 MHz, and 5725‑5850 MHz frequency bands.
They provide a raw over‑the‑air data rate of 1.536 Mbps.
Depending on the model, the kits offer 12, 40, or 59 frequency‑agile channels.
Transmit power ranges from 16 dBm to 22 dBm across the different kits.
