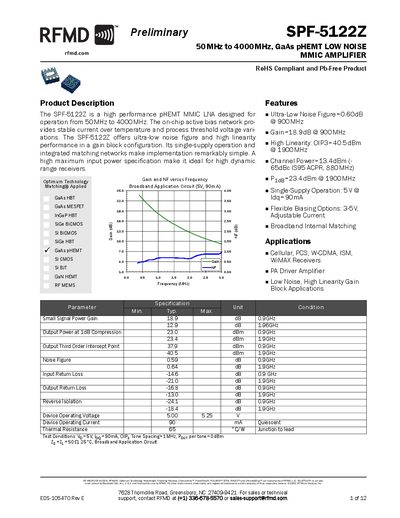

The SPF-5122Z is a high performance pHEMT MMIC LNA designed for operation from 50MHz to 4000MHz. It offers ultra-low noise figure and high linearity performance in a gain block configuration. Its single-supply operation and integrated matching networks make implementation remarkably simple.
The SPF-5122Z is a high performance pHEMT MMIC LNA designed for operation from 50MHz to 4000MHz. It features an on-chip active bias network that provides stable current over temperature and process variations. The device offers ultra-low noise figure and high linearity performance in a gain block configuration, making it ideal for high dynamic range receivers.
| Operating Frequency Range | 50MHz to 4000MHz |
|---|---|
| Noise Figure @ 900MHz | 0.60dB |
| Gain @ 900MHz | 18.9dB |
| Output Third Order Intercept Point @ 1.9GHz | 40.5dBm |
| Operating Voltage | 5V |
| Operating Current | 90mA |
| Maximum Device Voltage | 55V |
| Maximum Junction Temperature | 150 °C |
Yes, it is a RoHS Compliant and Pb-Free Product.
The maximum RF input power rating is 27 dBm.
