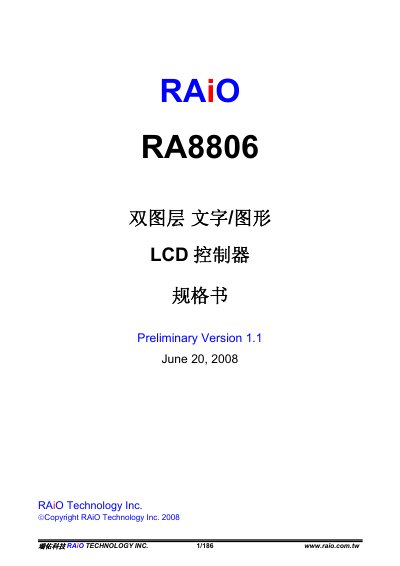

This datasheet describes the RAiO RA8806, a dual-layer STN-LCD controller supporting Chinese characters, ASCII, touch scanning, and PWM control.
The RAiO RA8806 is a text and graphics mode point matrix liquid crystal display (STN-LCD) controller. It features built-in dual-layer display memory and 512Kbyte ROM for character codes, supporting Traditional Chinese (BIG5), Simplified Chinese (GB), and ASCII characters. The device supports MPU interfaces compatible with 8080/6800 series processors and can be configured for 4-bit or 8-bit data buses. This manual is written in Chinese.
| Display Memory | Dual-layer (Two Page) |
|---|---|
| Font ROM Size | 512Kbyte |
| Character Generation RAM | 512Byte |
| MPU Interface | 8080/6800 series |
| Max Resolution (General Mode) | 320x240 pixels |
| Max Resolution (Extended Mode) | 640x240 or 320x480 pixels |
| Power Supply Range | 2.4V ~ 5.5V |
| Clock Frequency | 4M ~ 12MHz |
Yes, it includes a smart resistive touch scan controller supporting a 4-line interface.
Yes, it supports displaying 4-grayscale patterns.
