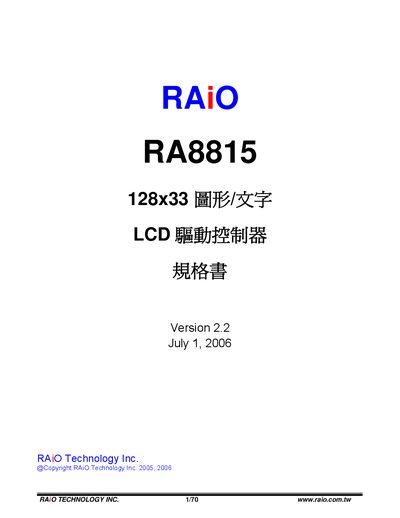

This document is the specification sheet for the RA8815 128x33 graphic/text LCD driver controller by RAiO Technology Inc. The document describes the features and characteristics of the product.
The RA8815 is a 128×33 graphic/writing LCD drive controller with built‑in 256 KB font ROM, 528 Byte display RAM, 354 Byte buffer, and 256 Byte SRAM for custom characters. It supports multiple language sets, including Chinese, English, Japanese and ASCII, and provides both horizontal and vertical scrolling functions.
The document describes the system block diagram, MPU interface (8080/6800, 4‑bit/8‑bit), key‑scan interface (4 × 5 matrix), power‑supply circuits, pin definitions, electrical characteristics, and ITO resistance tables for COG pads. It also includes register maps and timing specifications for developers integrating the controller into their designs. This manual is written in Chinese.
| LCD panel size | 128 × 33 pixels |
|---|---|
| Font ROM size | 256 KB |
| Display RAM size | 528 Bytes |
| Buffer size | 354 Bytes |
| SRAM size | 256 Bytes |
| Operating voltage | 2.5 V – 3.6 V |
| Supported MPU interfaces | 8080/6800 series, 4‑bit or 8‑bit |
| Serial interfaces | 3‑wire and 4‑wire modes |
It supports a 128 × 33 pixel LCD panel.
The chip operates from 2.5 V to 3.6 V.
The controller supports 8080 and 6800 series MPUs with either 4‑bit or 8‑bit data bus.
