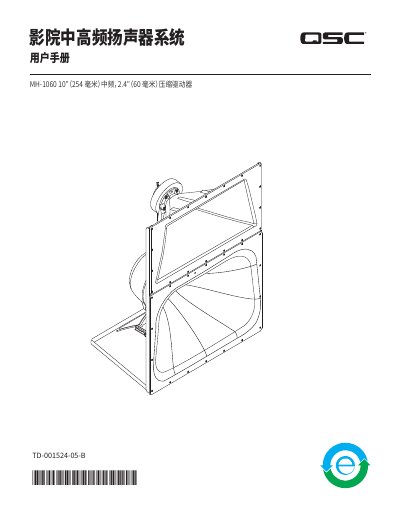

This manual provides installation, alignment, connection, and specification instructions for the QSC MH-1060 mid-high frequency speaker system designed for…
The QSC MH-1060 is a high-performance mid-high frequency component designed for three-way screen channel speaker systems in cinema applications. It features a 10-inch efficient mid-range driver with a phase ring load and a 2.4-inch titanium diaphragm compression driver for high frequencies. The system includes a built-in crossover network and is pre-assembled to reduce on-site assembly time, requiring only three bolts to mount onto a QSC low-frequency cabinet. This manual is written in Chinese.
The maximum continuous input power is 200 W based on standard impedance.
The system covers a frequency range from 20 Hz to 20 kHz.
The terminals can accept up to #10 AWG (6 mm²) stranded speaker wire.
