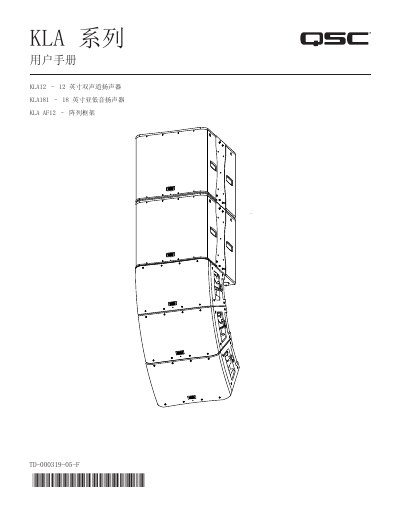

This manual covers installation, operation, and safety warnings for the QSC KLA12 12-inch speaker, KLA181 subwoofer, and KLA AF12 array frame.
The document is a user manual for the QSC KLA Series loudspeaker system, which includes the KLA12 12-inch two-way speaker, the KLA181 18-inch subwoofer, and the KLA AF12 array frame. The series features advanced technologies such as DEEP™ DSP algorithms, GuardRail™ circuit protection, and Intrinsic Correction™ for the KLA12 model.
The manual provides detailed instructions on safety precautions, including proper lifting techniques and electrical warnings. It outlines installation procedures for hanging the speakers using the SOLO™ Single-Operator Logistics system or Tilt-Direct™ stands, specifying maximum load configurations and array setups. This manual is written in Chinese.
| KLA12 Power Amplifier | 500 W x 500 W |
|---|---|
| KLA181 Power Amplifier | 1,000 W |
| KLA12 Weight | 55 lbs (25 kg) |
| KLA181 Weight | 104 lbs (47.2 kg) |
| KLA AF12 Weight | 23 lbs (10.4 kg) |
| Array Design Factor | 10:1 |
Consult a licensed professional engineer to verify all attachments and ensure structural integrity before lifting.
An array can include up to 5 KLA12 speakers, depending on the configuration option selected.
The KLA12 features a high-efficiency power amplifier module rated at 500 W x 500 W.
