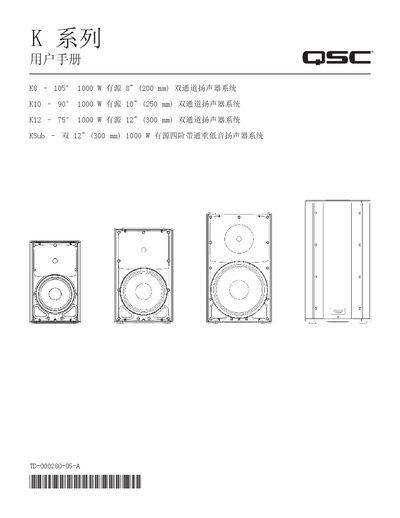

The document introduces different models and features of the K series speaker systems, including K8, K10, K12, and KSub. These speaker systems have different sizes, power ratings, and sound dispersion angles, suitable for various audio applications.
The QSC K Series includes the K8, K10, K12 and KSub powered loudspeaker systems. This manual provides safety warnings, installation guidelines, wiring diagrams, and detailed technical specifications for each model.
Key sections cover warranty information, FCC compliance, product features, recommended mounting methods, cooling requirements, and a full list of accessories and optional parts. This manual is written in Chinese.
| Output Power | 1000 W (Class D) |
|---|---|
| Frequency Response | 66 Hz – 18 kHz (‑6 dB) |
| Input Impedance (XLR) | 40 kΩ (balanced) |
| Recommended Clearance Behind Speaker | At least 6 in (152 mm) |
QSC provides a three‑year limited warranty covering material and workmanship defects.
Leave at least 6 inches (152 mm) of space behind the cabinet to allow airflow.
