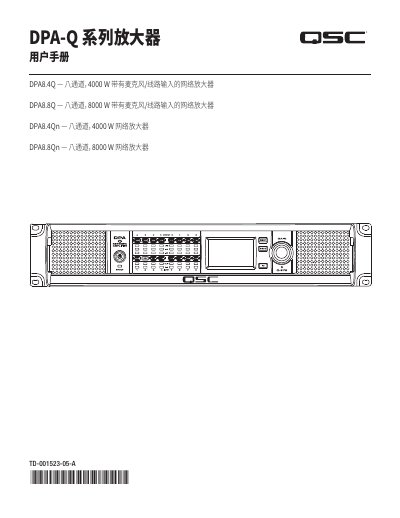

User manual for QSC DPA‑Q series network amplifiers covering installation, operation, safety, and technical specifications.
The DPA‑Q series includes the DPA8.4Q, DPA8.8Q, DPA8.4Qn and DPA8.8Qn eight‑channel network amplifiers. The manual provides safety warnings, installation steps, wiring diagrams, and configuration guidance for both analog‑input and network‑only models.
Key sections describe rack mounting, input and output connections, GPIO functions, firmware updates, and detailed specifications such as power ratings, distortion, and frequency response. This manual is written in Chinese.
| Frequency Response | 20 Hz – 20 kHz ±0.3 dB (8 Ω) |
|---|---|
| Input Impedance | >8 kΩ |
| Power Supply | 100‑240 VAC, 50‑60 Hz |
| Weight | 25 lb (11.3 kg) |
Insert a paperclip into the pinhole reset, hold for 3 seconds, then press the ID button to confirm the reset.
