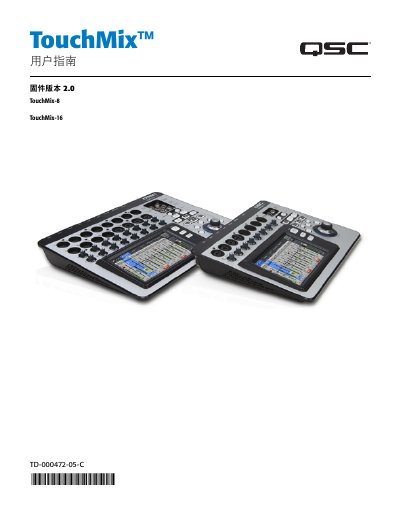

The QSC TouchMix-8 and TouchMix-16 user guide provides setup, operation, safety, and maintenance instructions for firmware version 2.0.
This guide covers safety warnings, installation requirements, and warranty information for the TouchMix digital mixing consoles. It explains how to register the device, upgrade firmware, and configure network and Wi‑Fi settings.
The manual details the user interface, channel processing, effects, recording, playback, and advanced features such as DCA groups, mute groups, and remote control via iOS apps. It also includes specifications, dimensions, and recommended accessories. This manual is written in Chinese.
| Display | 6.1" x 3.5" color TFT touch screen |
|---|---|
| Input Channels (TouchMix‑8) | 12 input channels (4 XLR/TRS combo, 4 XLR, 2 1/4" TRS) |
| Input Channels (TouchMix‑16) | 20 input channels (4 XLR/TRS combo, 12 XLR, 2 1/4" TRS) |
| Main Outputs | 2 XLR balanced line‑level outputs |
| Dimensions (TouchMix‑8) | 56 mm × 333 mm × 245 mm |
| Dimensions (TouchMix‑16) | 58 mm × 360 mm × 291 mm |
| Weight (TouchMix‑8) | 4.3 lb (1.7 kg) |
| Weight (TouchMix‑16) | 5.9 lb (2.98 kg) |
| Power Requirement | 100‑240 VAC, 50‑60 Hz |
| Total Harmonic Distortion (THD) | < 0.005 % |
| Frequency Response | 20 Hz – 20 kHz ±0.5 dB |
| Dynamic Range | 105 dB |
The manual uses the word “警告！” to indicate safety information that, if ignored, could cause personal injury or death.
The TouchMix‑8 provides 12 input channels.
The TouchMix‑16 measures 58 mm × 360 mm × 291 mm (height × width × depth).
Warranty details are provided in the “保修” section of the guide and can be accessed online at www.qsc.com.
