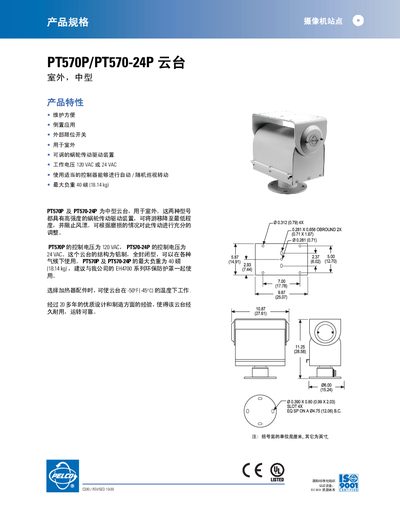

The Pelco PT570P/PT570-24P PTZ mount specification sheet details features, electrical and mechanical specs, environmental ratings, and optional accessories.
The PT570P and PT570-24P are medium‑size outdoor PTZ mounts with a high‑strength worm‑gear drive, offering easy maintenance, inverted operation, external limit switches, and optional heating for low‑temperature use. They support 120 VAC or 24 VAC control voltage and can carry a maximum payload of 40 lb (18.14 kg).
Technical data include horizontal rotation of 0‑355° at 6°/s ±1°, tilt of ±90° at 3°/s ±0.5°, torque ratings of 10 ft‑lb (horizontal) and 20 ft‑lb (tilt), and operation from –10°F to 120°F (with heater down to –50°F). The aluminum, fully sealed construction meets C‑E, UL, and NEMA 3R standards and offers optional accessories such as protective enclosures and mounting brackets. This manual is written in Chinese.
| Maximum payload | 40 lb (18.14 kg) |
|---|---|
| Control voltage | 120 VAC or 24 VAC |
| Tilt speed | 3°/s ±0.5° |
| Horizontal torque | 10 ft‑lb |
| Tilt torque | 20 ft‑lb |
| Unit weight | 22 lb (9.9 kg) |
| Operating temperature range | –10°F to 120°F (–23°C to 49°C) |
| Low‑temperature operation with heater | down to –50°F (–45°C) |
It can carry up to 40 lb (18.14 kg).
The mount can be powered by either 120 VAC or 24 VAC.
