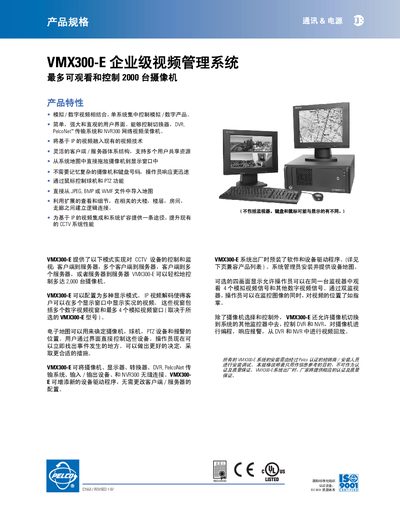

The VMX300-E is an enterprise-level video management system that can simultaneously view and control up to 2000 cameras. The system uses analog/digital video combined, single-system centralized control of analog/digital products. The system has a simple, powerful and intuitive user interface that can control switches, DVRs, PelcoNet™ transmission systems, and NVR300 network video recorders. In addition, the VMX300-E can also integrate IP video into existing video technology and, through a flexible client/server architecture, support multiple users sharing resources.
The VMX300‑E is an enterprise video management system that can control up to 2000 cameras, supporting both analog and digital video streams. It offers flexible client configurations, multi‑screen display, and integration with PelcoNet, DVR, and NVR devices.
The manual details hardware ports, licensing options, power and environmental specifications, and installation guidelines, helping users set up and operate the system efficiently. This manual is written in Chinese.
| Power consumption | 75 W |
|---|---|
| Input voltage | 100‑240 VAC, 50/60 Hz |
| Operating temperature | 41 °F to 85 °F (5 °C to 29 °C) |
| Maximum humidity | 80 % RH |
| Dimensions (Rack) | 21.60" D × 19.00" W × 7.00" H (4 U) |
| Weight (net) | 34 lb (15.5 kg) |
| Weight (shipping) | 53 lb (24 kg) |
| Video output | VGA or SVGA |
| RS‑232 ports | COM1, COM2 |
| RS‑422 ports | COM3, COM4 |
The VMX300‑E can manage up to 2000 cameras.
The system supports VGA and SVGA video outputs.
