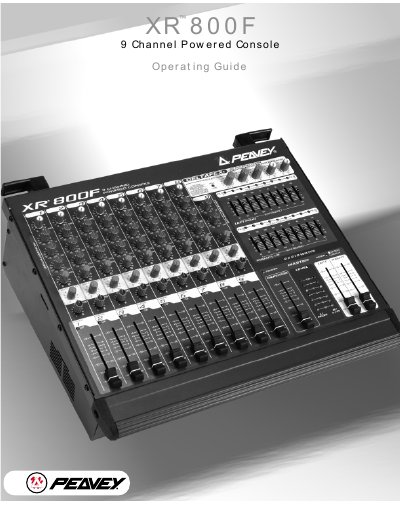

This document is the operating guide for the XR 800F 9 Channel Powered Console, providing important instructions for the user to operate and maintain the product.
The XR 800F is a 9‑channel, tabletop powered mixing console that combines mic preamps, line inputs, graphic EQs and a built‑in power amplifier. This operating guide explains how to connect power, speakers and audio sources, and how to use the console's controls and effects.
Key sections cover safety warnings, AC power connection, power‑amp wiring, master input/output routing, master fader and LED functions, channel strip controls, specifications, and phantom‑power operation. Follow the instructions to ensure safe setup and optimal performance.
| Low‑Z Mic Input Impedance | 2.2 kΩ |
|---|---|
| Mic Input Max Gain | 48 dB |
| Speaker Output Minimum Load (Bridge Mode) | 8 Ω |
| Power Amplifier Output Power | 2×210 W @ 4 Ω |
The bridge mode requires a minimum load of 8 Ω; using a lower impedance can damage the amplifier.
The console provides eight low‑noise, low‑Z mic preamps on channels 1‑8.
