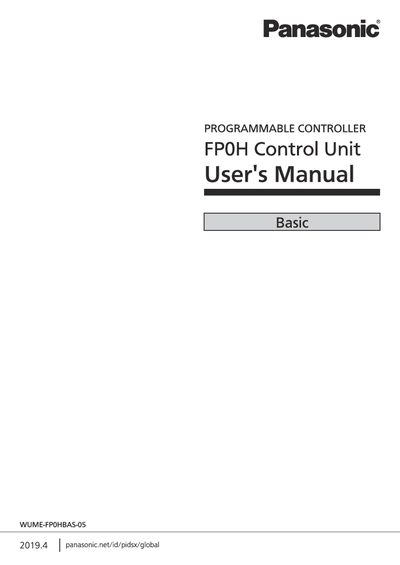

This manual provides safety precautions, installation, wiring, programming, and maintenance instructions for the Panasonic FP0H control unit.
The manual begins with safety warnings and an overview of the FP0H system, including unit types, specifications, and power supply details. It also lists the model numbers for control units, expansion units, and communication cassettes.
Subsequent sections cover installation and wiring procedures, programming tools, memory backup, security functions, troubleshooting, and maintenance. Detailed specifications for the control unit, expansion units, and communication interfaces are provided at the end of the document.
| Input type | 16-point DC input |
|---|---|
| Output type | 16-point transistor output (NPN) |
| Power supply | 24 VDC |
| Data register capacity | 65533 / 32765 words |
| Dimensions | 30.4 × 90 × 60 mm |
The manual warns to avoid flammable gases, never expose the unit to fire, do not impact or heat the lithium battery, and ensure proper grounding and emergency‑stop circuits.
It provides a 16‑point DC input and a 16‑point transistor output (NPN).
