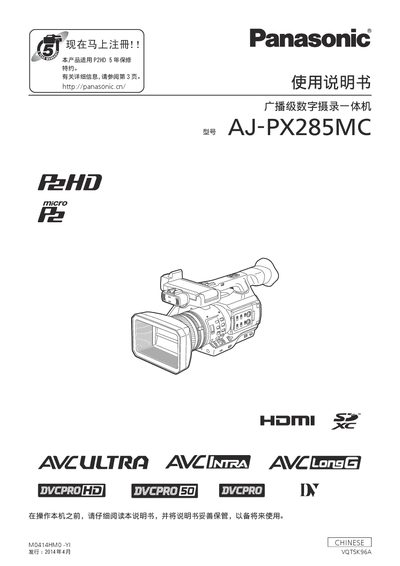

The Panasonic AJ-PX285MC broadcast‑grade digital camcorder user manual provides safety guidelines, setup steps, operation instructions and specifications.
This manual covers all essential information for safely operating the Panasonic AJ‑PX285MC broadcast digital camcorder, including safety warnings, battery handling, ventilation, and proper use of accessories such as tripods and lenses. Detailed sections guide users through power setup, battery charging, and preparation before shooting.
The document also explains menu navigation, recording settings, connectivity options (USB, HDMI, network), and maintenance procedures. A comprehensive specifications chapter lists electrical, mechanical and optical parameters, while an index helps locate topics quickly. This manual is written in Chinese.
| Battery voltage (DC) | 7.2 V |
|---|---|
| Adapter voltage (DC) | 12 V |
| Power consumption (LCD on) | 19.5 W |
| Operating temperature range | 0 °C – 40 °C |
| Weight (body only) | ≈2.2 kg |
| Dimensions (W × H × D) | 176 mm × 171 mm × 329 mm |
| Image sensor | 1/3" MOS, 2.2 MP |
| Optical zoom | 22× (F1.6‑F3.2) |
| USB2.0 Device connector | Mini‑B, 4‑pin |
The camcorder can operate between 0 °C and 40 °C.
Select the format option in the menu to format the P2 card.
The AC adapter provides 12 V DC (10.5 V – 13.5 V) at up to 2.5 A.
