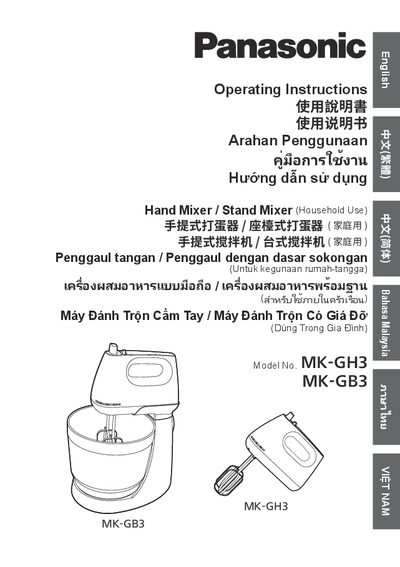

The Panasonic MK-GH3 / MK-GB3 hand and stand mixer user manual provides safety instructions, operation steps, cleaning, troubleshooting, and specifications.
This manual explains safety precautions, important information, and part names for the Panasonic MK‑GH3 hand mixer and MK‑GB3 stand mixer. It emphasizes proper handling, warns against disassembly, and outlines the correct way to connect the power plug and operate the device safely.
Detailed usage instructions cover how to assemble the beaters or dough hooks, operate the hand mixer, use the stand mixer (MK‑GB3 only), clean the appliance, and troubleshoot common problems. The specifications section lists electrical requirements, power consumption, speed settings, dimensions, weight, and recommended continuous‑operation limits.
| Power supply | 220‑240 V 50‑60 Hz |
|---|---|
| Power consumption | 175 W |
| Speed 1 | 670 rpm |
| Speed 2 | 750 rpm |
| Speed 3 | 950 rpm |
| Speed 4 | 1050 rpm |
| Speed 5 | 1150 rpm |
| Continuous operation rating | 5 min ON / 20 min OFF |
| Weight (hand mixer) | 1.08 kg |
| Width | 9.3 cm (hand) / 19.8 cm (stand) |
| Height | 15.1 cm (hand) / 35 cm (stand) |
| Cord length | 1.7 m |
Make sure the power plug is firmly inserted and the switch is set to the "0" (off) position before turning it on; if it still does not operate, unplug and contact a service center.
Unplug the appliance, remove the beaters or dough hooks, and clean all surfaces that contact food; do not immerse the mixer, stand, power cord, or plug in water.
Do not run the hand mixer continuously for more than 5 minutes; after 5 minutes, turn it off and let it rest for at least 20 minutes before using it again.
