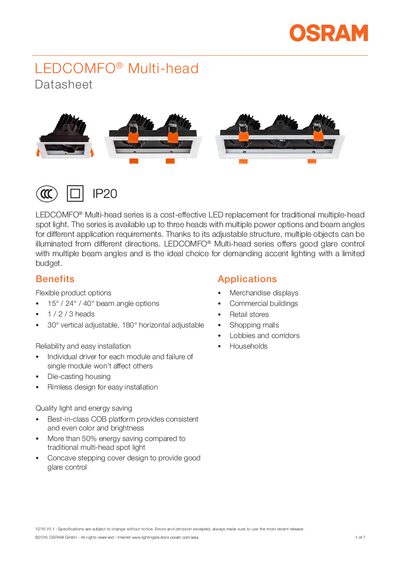

The OSRAM LEDCOMFO® Multi-head LED datasheet provides specifications, dimensions, optical and electrical data, and ordering codes for the multi-head series.
The LEDCOMFO® Multi-head series is a cost‑effective LED replacement for traditional multi‑head spotlights, offering flexible options such as 1‑3 heads, adjustable beam angles (15°, 24°, 40°) and vertical/horizontal positioning. It targets accent lighting in merchandise displays, retail stores, malls, lobbies, corridors and households.
The datasheet lists optical performance (luminous flux, efficacy, CCT), electrical parameters (input voltage 220‑240 V AC, power consumption 9‑60 W, power factor 0.95), mechanical dimensions, IP20 indoor rating, and detailed ordering codes for each configuration.
| Input Voltage | 220‑240 V AC 50/60 Hz |
|---|---|
| Power Consumption (single head 9 W) | 9 W |
| Efficacy (9 W × 1, 3000 K) | 70 lm/W |
| Beam Angle Options | 15°, 24°, 40° |
The series offers three beam angle options: 15°, 24°, and 40°.
The fixtures are rated IP20 for indoor use.
