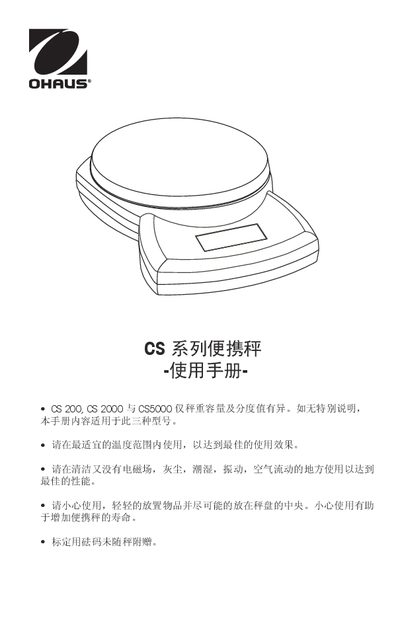

User manual for Ohaus CS 200, CS 2000 and CS 5000 portable scales covering operation, power, calibration, specifications and safety.
This manual provides operating instructions for the Ohaus CS series portable scales (CS 200, CS 2000, CS 5000). It explains how to install power (adapter or three AA alkaline batteries), use the scale functions such as unit selection, zeroing, overload indication, low‑battery warning, and automatic shut‑off.
The guide also details the calibration procedure, safety recommendations, and lists the technical specifications for each model, including capacity, linearity, dimensions, and environmental limits. This manual is written in Chinese.
| Capacity | 200 g (CS 200), 2000 g (CS 2000), 5000 g (CS 5000) |
|---|---|
| Linearity | ±0.1 g (CS 200), ±1 g (CS 2000/CS 5000) |
| Weight Units | g, lb, oz |
| Calibration Method | External calibration using standard weights |
| Stability Time | 3 seconds |
| Maximum Overload | 35 % of capacity |
| Auto Shut‑off | 4 minutes of inactivity (battery operation) |
| Operating Temperature | 18 °C – 25 °C |
| Scale Pan Size | 14.5 × 13.3 cm |
| Overall Dimensions | 20.5 × 14.0 × 4.0 cm |
| Net Weight | 0.4 kg |
| Power Source | Power adapter (not included) or three AA alkaline batteries |
Connect a power adapter (not supplied) to the rear socket or install three AA alkaline batteries in the battery compartment.
It signals an overload condition when the measured weight exceeds the scale’s capacity.
When powered by batteries, the scale automatically shuts off after four minutes of no button presses or weighing.
