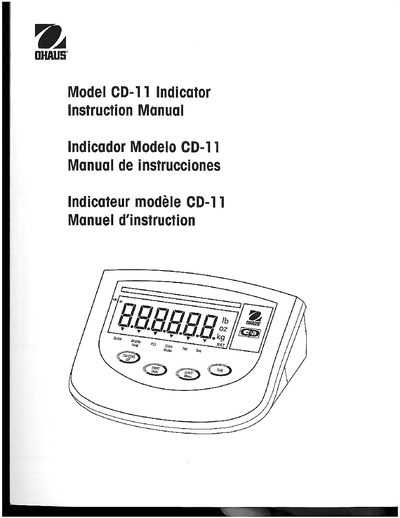

The CD-11 Indicator is a rugged, reliable electronic weight indicator designed for easy operation in laboratory and industrial environments. It offers a backlit LCD display, multiple weighing units, and optional accessories for table, wall, or tower mounting.
The manual covers safety precautions, unpacking, installation, wiring of load cells, RS‑232 interface, calibration, operation modes such as gross/net/tare, parts counting, display hold, and provides technical data, troubleshooting, and warranty information.
| Capacity (lb or kg) | 5 to 20,000 |
|---|---|
| Graduation (readability) | 0.001 to 20 |
| Maximum Displayed Resolution | 1; 20,000 |
| Weighing Units | lb, kg, oz, g |
| Stabilization Time | < 3 seconds |
| Power | AC 120/230 V or 6 alkaline C batteries |
| Dimensions (W×D×H) | 8.25 x 6.75 x 3 in |
| Operating Temperature | -10 °C to 40 °C |
| Load Cell Excitation Voltage | 5 V |
| Load Cell Input Sensitivity | Up to 3 mV/V |
It supports up to four 350 ohm analog load cells.
It can be powered by an AC adapter (120/230 V) or six alkaline C‑type batteries.
The indicator stabilizes in less than 3 seconds.
