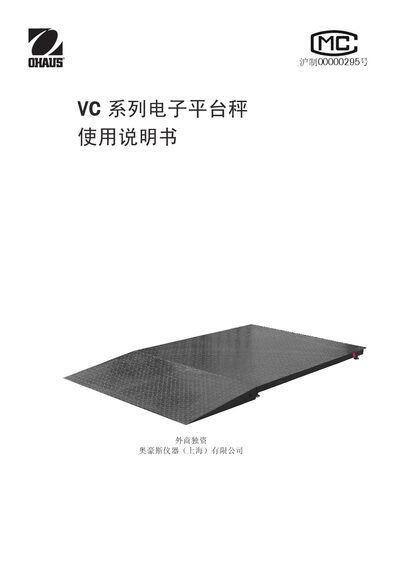

Ohaus VC Series Electronic Platform Scale User Manual

About this manual

This manual covers the safe installation and use of the Ohaus VC series electronic platform scale. It begins with safety precautions, assembly steps, and wiring details, including RS232 and power connections.

The guide then explains menu navigation, calibration procedures, operation modes, serial communication commands, regulatory information, and maintenance tasks such as cleaning and fault diagnosis. Technical drawings and ramp‑installation dimensions are also provided. This manual is written in Chinese.

What's inside

• Introduction
• Safety
• Overview
• Control Functions
• Assembly
• Installation
• Setup
• Operation
• Serial Communication
• Regulatory Information

Specifications

Frequently asked questions

What safety precautions should be taken before using the Ohaus VC series scale?

Check that the local voltage matches the name‑plate rating, ensure sensor and power cables are not obstructed, operate only in a dry environment, disconnect power before cleaning, and avoid use in hazardous or unstable locations.

How is the RS232 interface connected to the T31P base?

The RS232 connector is linked to the T31P base as described in section 2.2.1 of the manual.

How do I perform a full‑scale calibration?

Select the calibration menu and choose the “Full‑scale calibration” option (3.3.1) to complete the procedure.
