The SE series electronic balance (Scout™) is an electronic balance with installation, operation and maintenance functions. It is used in a dry and stable environment and can perform operations such as zeroing/taring, printing, calibration, etc. It also supports multiple weighing units and counting mode.

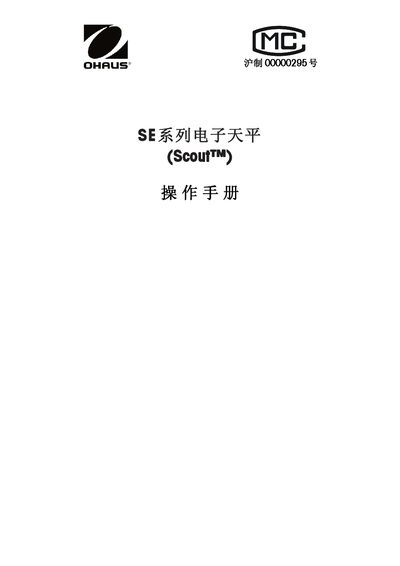

This manual covers the Scout SE series electronic balances, describing safety precautions, unpacking, installation, power options, and calibration procedures. It explains the operation panel functions, menu structure, and how to select weighing units and modes.
Technical specifications for each model are listed, along with optional accessories such as RS‑232 and USB communication modules, density measurement kits, and calibration weights. Contact information for service and warranty is provided at the end of the document. This manual is written in Chinese.
| Maximum weighing capacity (g) | 200–1500 |
|---|---|
| Minimum increment (g) | 0.01 |
| Accuracy (MPE) for 0–50 g | ±0.05 g |
| Range calibration weight (g) | 200 |
| Operating temperature range | 10–30 °C |
Press the short‑press clear/tare key to power on, then long‑press the print/calibrate key; when the display shows [CAL] release the key, place the required calibration weight, and short‑press Yes to complete the calibration.
The balance can be powered from the supplied AC adapter or from four AA batteries (batteries are not included).
Short‑press the unit conversion / weighing mode button to cycle through the available units such as g, kg, etc.
In the Setup menu, set the Auto‑Off option to On; the balance will shut down after four minutes of inactivity.
