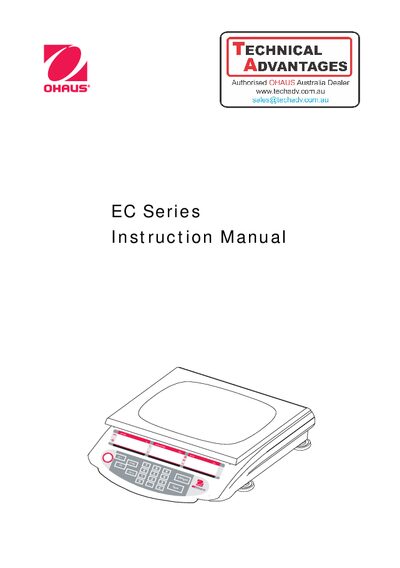

This manual contains installation, operation and maintenance instructions for the EC Series Electronic Scale.
This manual covers the complete setup and use of the Ohaus EC Series counting scales, including unpacking, installation, power connection, and initial calibration. Detailed instructions guide users through weighing operations, APW calculations, memory storage, and troubleshooting.
Technical data, safety precautions, warranty information, and compliance details are also included, giving users a full reference for maintaining accuracy and safety while using the EC3, EC6, EC15, and EC30 models.
| Capacity | 3000 g / 6000 g / 15000 g / 30000 g |
|---|---|
| Readability | 0.1 g / 0.2 g / 0.5 g / 1 g |
| Maximum Displayed Resolution | 1:30000 |
| Construction | Stainless steel pan, plastic housing |
| Weighing Units | g, lb |
| Battery Life | 80 hours continuous use (12 h recharge) |
| Power Supply | AC Adapter 12 V DC / 800 mA |
| Operating Temperature | 0 °C to 40 °C |
Connect the supplied AC adapter to the power input; the internal rechargeable battery will charge and can power the scale when AC is unavailable.
The scale provides 10 memory locations (numeric keys 0‑9) for storing Average Piece Weight values.
The internal rechargeable battery lasts about 80 hours of continuous use and requires a 12‑hour recharge.
