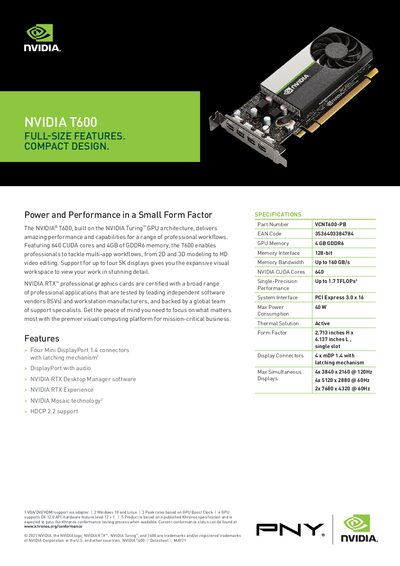

The NVIDIA T600 datasheet details specifications, features, and power requirements of the professional graphics card.
The NVIDIA T600, built on the NVIDIA Turing GPU architecture, offers 640 CUDA cores and 4 GB of GDDR6 memory for demanding professional workflows such as 2D/3D modeling and HD video editing. It supports up to four 5K displays, providing a large visual workspace for multi‑app environments.
Key features include four Mini DisplayPort 1.4 connectors with latching, NVIDIA RTX Desktop Manager, RTX Experience, Mosaic technology, and HDCP 2.2 support. The card draws a maximum of 40 W and fits a compact single‑slot form factor (2.713" H × 6.137" L).
| Part Number | VCNT600-PB |
|---|---|
| GPU Memory | 4 GB GDDR6 |
| Memory Interface | 128‑bit |
| Memory Bandwidth | Up to 160 GB/s |
| CUDA Cores | 640 |
| Single‑Precision Performance | Up to 1.7 TFLOPs |
| System Interface | PCI Express 3.0 × 16 |
| Max Power Consumption | 40 W |
| Thermal Solution | Active |
| Form Factor | 2.713" H × 6.137" L, single slot |
| Display Connectors | 4 × Mini DisplayPort 1.4 (latching) |
| Max Simultaneous Displays | 4 |
It uses 4 GB of GDDR6 memory.
The T600 can drive up to four displays simultaneously, including up to four 5K screens.
The card’s maximum power consumption is 40 W.
