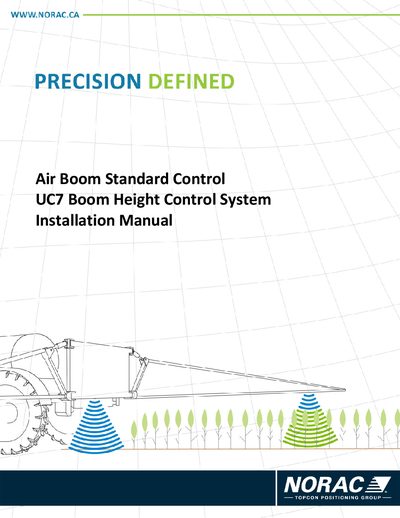

NORAC UC7 Air Boom Height Control System Installation Manual

Installation manual for the NORAC UC7 Air Boom Height Control System, covering specifications, parts, checklist, sensor and electronic setup.

Brand: Norac
Category: Agricultural Machinery
Document type: Installation Guide
Language: English
Pages: 27
File format: PDF
File size: 1.6 MB
Published: 06 October, 2026
Updated: 06 October, 2026
Model: UC7
MD5 checksum: 7FFF1AF17C4B5321645F27B9A1816C8C
PDF: NORAC UC7 Air Boom Height Control System Installation Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing the NORAC UC7 Air Boom Height Control System. It begins with an introduction, technical specifications, and a detailed parts overview, followed by a pre‑installation checklist to verify sprayer readiness.

Subsequent sections cover ultrasonic sensor mounting guidelines, electronic installation, software setup, and cable schematics. Safety notes, part numbers, and troubleshooting tips are included throughout to ensure a reliable installation.

What's inside

Introduction
Technical Specifications
Parts Overview
Pre‑Installation Checklist
Ultrasonic Sensor Installation
Electronic Installation
Software Setup
Cable Schematics
Notes

Specifications

Supply Voltage (rated)	12VDC
Supply Current (rated)	10A
Hydraulic Pressure (maximum)	3300 psi
Baud Rate	250 kbps
Operating Temperature Range	0°C to 80°C

Frequently asked questions

What is the minimum distance the ultrasonic sensor must be from the ground?

The sensor must be at least 9 inches (230 mm) above the ground in its lowest position.

What supply voltage does the system require?

The system is rated for a 12 VDC supply voltage.

What is the maximum hydraulic pressure the system can handle?

The system can tolerate up to 3300 psi of hydraulic pressure.
