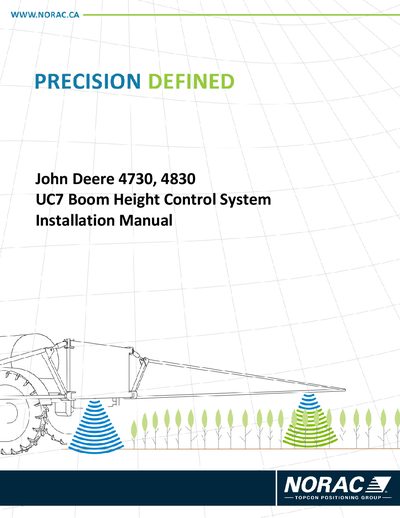

NORAC UC7-BC-JD08 Installation Manual for John Deere 4730/4830 Boom Height Control System

About this manual

This manual provides step‑by‑step instructions for installing the NORAC Boom Height Control System on John Deere 4730 and 4830 sprayers. It includes safety notices, a parts list, hydraulic and electronic wiring diagrams, and software setup guidance.

The document is organized into sections covering technical specifications, a pre‑installation checklist, hydraulic and ultrasonic sensor installation, electronic installation, system maintenance, and cable schematics. Additional troubleshooting resources are available online at the NORAC support site.

What's inside

• Introduction
• Technical Specifications
• Parts Overview
• Pre‑Installation Checklist
• Hydraulic Installation
• Ultrasonic Sensor Installation
• Electronic Installation
• System Maintenance
• Software Setup
• Cable Schematics

Specifications

Frequently asked questions

What supply voltage is required for the system?

The system requires a rated supply voltage of 12 VDC.

What is the maximum hydraulic pressure the system can handle?

The system is rated for a maximum hydraulic pressure of 3300 psi.

Can high‑speed power tools be used during installation?

No, high‑speed power tools or drills should not be used when installing hardware.

Where can I find additional installation and troubleshooting information?

Additional resources are available at www.solutions.norac.ca.
