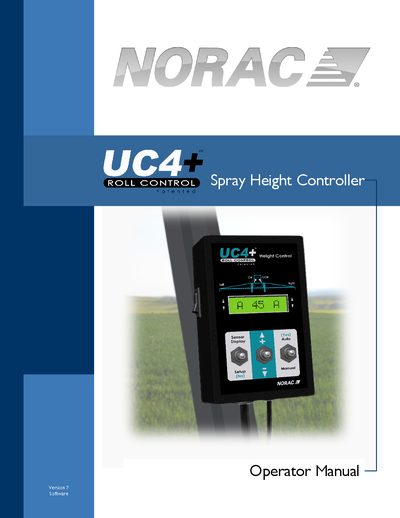

The NORAC UC4+ Spray Height Controller Operator Manual provides setup, operation, safety, maintenance, and troubleshooting instructions for the UC4+ system.
This operator manual introduces the NORAC UC4+ Spray Height Control System, outlines safety precautions, and describes key features such as non‑contact ultrasonic height sensing and automatic software setup. It details the system layout, including height and roll sensors, the control panel, and how the system integrates with various sprayer models.
The guide explains basic operation, menu navigation, and how to switch between automatic and manual modes. It also covers system setup procedures, optional kits, configurable options, routine maintenance, troubleshooting steps, and the limited warranty terms.
| Height Sensors | 3 to 6 sensors |
|---|---|
| Roll Sensors | 2 sensors |
| Sensor Type | Ultrasonic |
| Control Panel Actuation | Solenoid operated valves |
| Software Version | Version 7 |
Normally three height sensors are used, but the system can be configured with up to six sensors.
