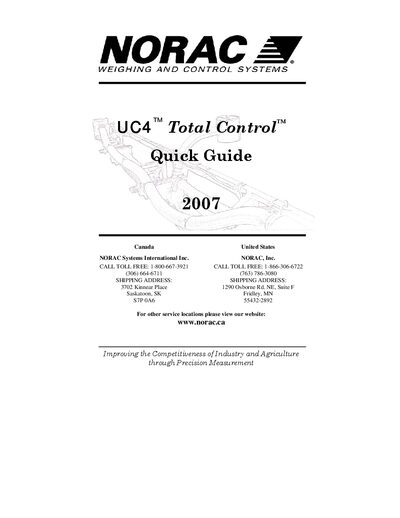

NORAC UC4 Total Control Quick Start Guide

About this manual

This quick guide provides operators with essential information to run the UC4 Total Control automatic boom height control system safely and efficiently. It is intended to be used together with the full Technical Manual and Installation Manual, and assumes familiarity with the control panel menu.

Key sections include operator safety procedures, basic operation steps, troubleshooting common symptoms, interpreting error messages, and detailed sensor‑and‑rod alignment instructions. A quick‑reference table at the end helps locate solutions rapidly during field use.

What's inside

• Introduction
• Operator Safety
• Basic UC4 Operation
• Common Symptoms and Solutions
• UC4 Error Messages
• Sensor and Rod Alignment
• Quick Reference
• Statement of Limited Warranty

Specifications

Frequently asked questions

How do I switch between Automatic and Manual mode?

Toggle the "AUTO" switch on the control panel; in Manual mode you can use the boom control switches, and in Automatic mode the system controls boom height automatically.

How can I adjust the target boom height?

Use the +/- switch while in AUTO mode, or momentarily press the sprayer’s main lift control switch; each press changes the target height by one inch.

What does the sensor sensitivity setting control?

The sensitivity setting (default 5) adjusts system responsiveness; lower numbers reduce sensitivity and improve stability, while higher numbers increase response speed.
