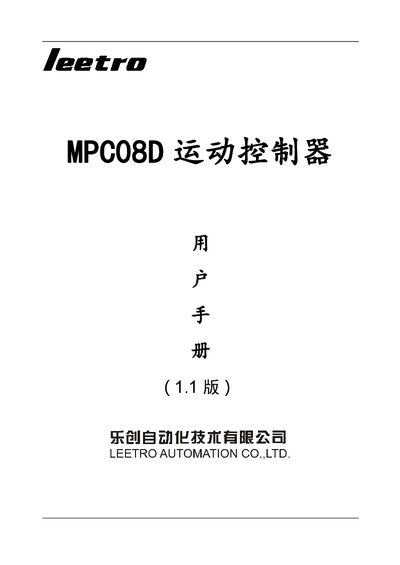

The Leetro MPC08D motion controller user manual provides specifications, installation steps, wiring methods and safety information for industrial automation…
This manual describes the MPC08D motion controller, a PCI‑based controller that can drive up to four axes of stepper or digital servo motors. It includes hardware and software installation, configuration, and typical system wiring.
Safety warnings, connection diagrams, and detailed technical parameters are provided to help users set up and operate the controller safely and reliably. This manual is written in Chinese.
| Control axes | 4 |
|---|---|
| General digital output points | 26 |
| Maximum output current (digital output) | 100 mA |
| Pulse output frequency range | 10 Hz – 4 MHz |
| Isolation voltage (general input) | 2500 VRMS |
| Operating voltage range | 5 V – 30 V |
A single MPC08D controller can control up to four axes.
Each general digital output can source up to 100 mA.
The controller supports Windows XP and Windows 7, both 32‑bit and 64‑bit versions.
The isolation voltage for both general and special input ports is rated at 2500 VRMS.
