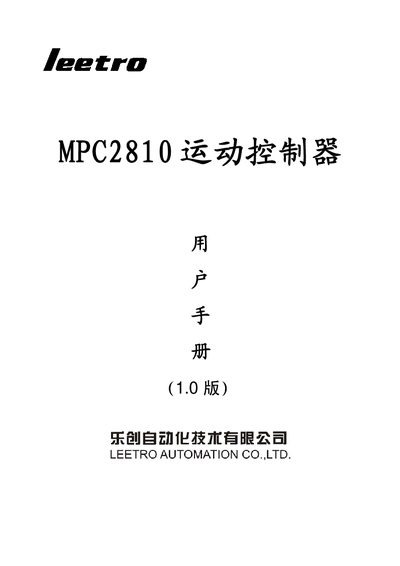

MPC2810 is a high-performance general-purpose controller. This manual describes the specifications and usage of the product.
The Leetro MPC2810 is a PC‑based motion controller that can drive up to four stepper or digital servo axes and supports multi‑card configurations for larger systems. This user manual describes the controller’s features, performance specs, and typical applications such as CNC machines, robots, and packaging equipment.
Key sections cover safety precautions, quick installation, wiring diagrams, software setup, system debugging, and typical connection examples with various driver models. The document also includes a command test module and parameter‑setting interface for advanced configuration. This manual is written in Chinese.
| Main interface | PCI (3.3V/5V dual) |
|---|---|
| Encoder inputs | 2 channels (A/B/Z) |
| Maximum pulse output frequency | 2 MHz |
| Minimum pulse output frequency | 0.2 Hz |
| General digital inputs | 18 points, DC24V optocoupled |
| General digital outputs | 24 points, max 500 mA |
| Special inputs per axis | 4 points (limit+, limit‑, home, deceleration) |
| Watchdog timer range | 1–60000 ms |
| Supported operating systems | Windows 2000, Windows XP |
A single MPC2810 controller can control up to four axes of stepper or digital servo motors.
The controller can generate pulse outputs up to 2 MHz.
It provides 18 general digital input points with DC24V optocoupling.
