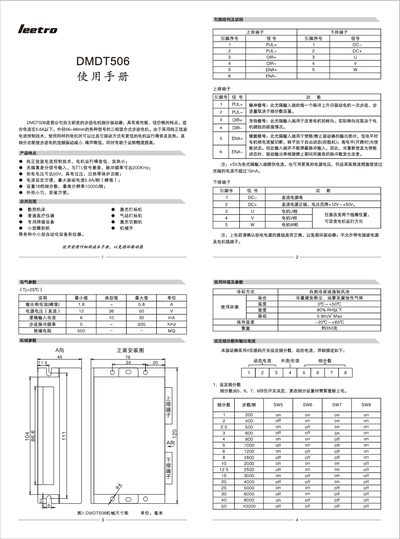

This manual describes the DMDT506 three‑phase mixed drive controller, including its electrical characteristics, mechanical dimensions, and pin assignments. It covers power supply requirements, signal interfaces, and configuration settings for various operating modes.
The document also provides wiring diagrams, installation tips, and recommended component values such as supply voltage, current limits, and PWM frequency. Safety notes and troubleshooting guidance are included to help users set up and maintain the controller correctly. This manual is written in Japanese.
| Input voltage range | 12 V – 50 V DC |
|---|---|
| PWM frequency range | 0 – 200 kHz |
| Maximum division rate | 10 000 |
It operates with a DC input voltage between 12 V and 50 V.
The PWM frequency can be set up to 200 kHz.
The connector has six pins: PUL+, PUL-, DIR+, DIR-, ENA+, ENA-.
