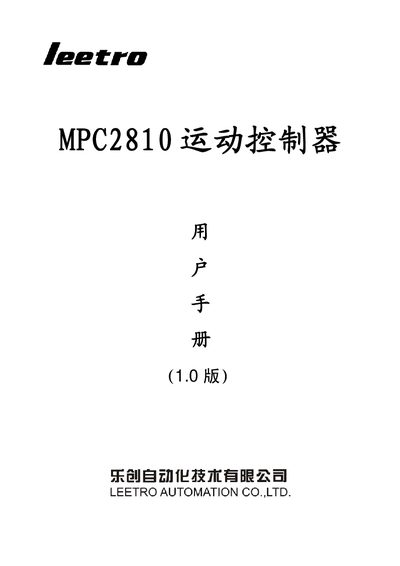

MPC2810 motion controller user manual from Leetro Automation, introduces the specifications and usage methods of MPC2810.
The MPC2810 is a PC‑based motion controller developed by Leetro Automation Technology Co., Ltd. It can control up to four axes of stepper or digital servo motors and offers features such as high‑speed pulse output, encoder inputs, and extensive digital I/O.
This manual covers safety warnings, unpacking checks, hardware and software installation, connection methods for power, motor, driver and encoder, system debugging, and typical wiring examples for various driver models. This manual is written in Chinese.
| Pulse output frequency | up to 2 Mpps |
|---|---|
| Pulse counter range | 32‑bit (±2,147,483,647) |
| Encoder inputs | Two 3‑phase (A/B/Z) auxiliary encoder inputs per card |
| Digital outputs | 24 channels, up to 500 mA per channel |
| Axis control | Controls up to 4 axes per card |
First turn off the external power, then disconnect the motor, driver and interface board, and finally disconnect the control card from the interface board.
