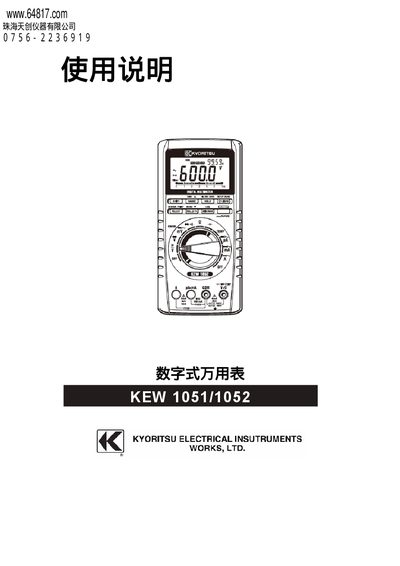

This manual provides operating instructions, safety guidelines, and technical specifications for the KYORITSU KEW 1051 and KEW 1052 digital multimeters.
The document serves as a user guide for the KYORITSU KEW 1051 and KEW 1052 digital multimeters. It covers essential safety precautions, including warnings about test leads, battery replacement, and environmental conditions to ensure safe operation.
The manual details various measurement functions such as DC/AC voltage, current, resistance, capacitance, frequency, temperature, diode testing, and continuity checks. It also explains specific features available on the KEW 1052 model, including data retention modes (DH, AH, RH), MIN/MAX/AVG calculations, memory storage, RMS/Mean detection switching, low-pass filtering, and optional USB or printer communication capabilities. This manual is written in Chinese.
| Display | 4-digit LCD, max 6000 counts |
|---|---|
| Test Functions | DC/AC Voltage, Current, Resistance, Frequency, Temperature, Capacitance, Diode, Continuity |
| Safety Rating (CAT) | CAT.II (1000V), CAT.IV (600V) |
| Power Supply | 4 x LR6 (AA) 1.5V batteries |
| Dimensions | Approx. 192(L) x 90(W) x 49(D) mm |
| Weight | Approx. 560g (with batteries) |
The maximum input voltage is AC/DC 1000V for CAT.II and AC/DC 600V for CAT.IV.
These advanced features are available on the KEW 1052 model.
Yes, the KEW 1052 can transmit data to a computer using an optional USB communication combination.
