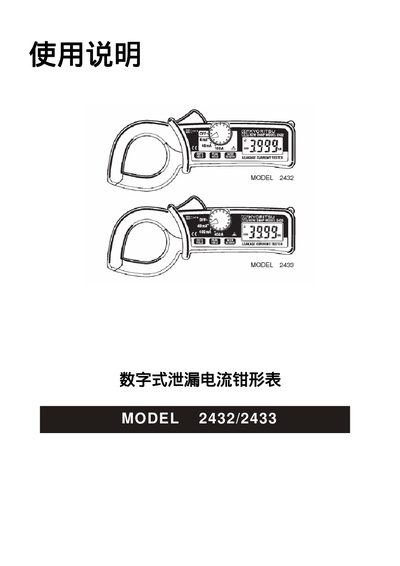

Instructions for using the digital leakage current clamp meter MODEL 2432/2433, including safety warnings, instrument features, and performance specifications.
The Kyoritsu 2432/2433 is a digital clamp meter designed for measuring leak current. It features a compact design, high‑resolution LCD, automatic shut‑off, data‑hold and peak‑hold functions, and complies with IEC 61010‑2‑032 safety standards.
The manual provides safety warnings, preparation steps, detailed measurement procedures, frequency‑selection guidance, battery replacement instructions, and information on optional accessories such as the M‑8004 and M‑8008 adapters.
| Measurement range (4 mA) | 0 ~ 3.999 mA, accuracy ±1.096 rdg + 5 dgt (50/60 Hz) |
|---|---|
| Measurement range (40 mA) | 0 ~ 39.99 mA, accuracy ±2.596 rdg + 10 dgt (20 ~ 1 kHz) |
| Measurement range (0 ~ 80 A) | 0 ~ 80 A, accuracy ±1.09 rdg + 5 dgt (50/60 Hz) |
| Maximum LCD display value | 3999 |
| Battery type | 2 × CR2032 (3 V) cells |
| Continuous measurement time | ≈ 40 hours |
| Auto shut‑off timer | 10 minutes of inactivity |
| Safety standard | IEC 61010‑2‑032 CAT 300 V, pollution degree 2 |
| Maximum conductor diameter | 40 mm |
| Weight (M‑2432) | ≈ 290 g (incl. battery) |
| Weight (M‑2433) | ≈ 270 g (incl. battery) |
Press the peak‑hold button; the display shows “P”. Press the button again to exit peak‑hold mode.
The clamp can accommodate conductors up to 40 mm in diameter.
Rotate the frequency selector switch to “50/60 Hz” for basic mains frequency or to “WIDE” for a broader range; the corresponding label appears on the left side of the display.
