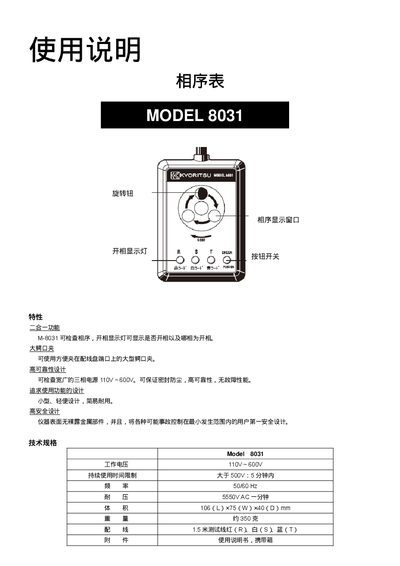

TS-17 M-8031 Phase Sequence Indicator User Manual

About this manual

The TS-17 M-8031 is a compact and portable phase sequence indicator designed to check three-phase power sources ranging from 110V to 600V. It features a built-in phase sequence indicator light to determine if the phase sequence is correct or reversed, ensuring safe operation of connected machinery. The device is constructed with no exposed metal parts on the surface to minimize the risk of accidents, adhering to high safety standards. This manual is written in Chinese.

What's inside

• Features
• Technical Specifications
• Operation Steps
• Phase Sequence Check
• Reverse Rotation Check
• Safety Precautions
• Contact Information

Specifications

Frequently asked questions

What is the working voltage range of the M-8031?

The device can check three-phase power sources ranging from 110V to 600V.

How do I check for a reversed phase sequence?

If any of the three indicator lights (R, S, T) do not light up, it indicates a reversed phase sequence.

How can I determine the direction of rotation?

Connect the device to the motor; if the rotation is counter-clockwise, swap two or three wires until it rotates clockwise.
