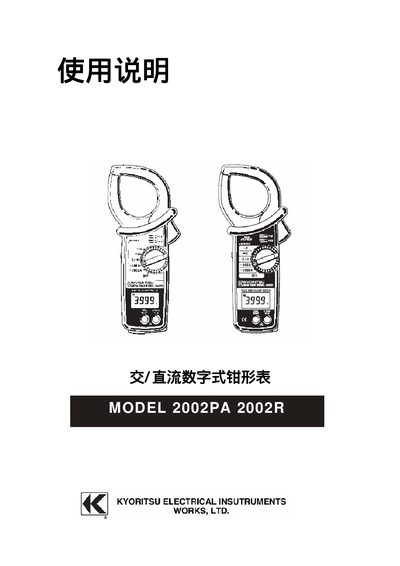

User manual for the Kyori tsu 2002PA/2002R clamp meter with safety instructions, specifications and operation guidance.
The Kyori tsu 2002PA/2002R is a direct‑current digital clamp meter designed for measuring AC/DC current, voltage and resistance. The manual provides safety warnings, features, performance specifications, instrument layout, measurement preparation, operation procedures, and optional accessories.
Key sections cover safe handling, battery replacement, data‑hold functions, sleep mode, and detailed measurement ranges. The device complies with IEC 61010 safety standards and includes a LCD display, automatic ranging, and overload protection.
| AC Current Range | 400 A – 2000 A |
|---|---|
| Accuracy (Current 2000 A range) | ±3.0 % |
| Display | LCD, up to 4000 counts |
| Dimensions | 247 mm × 105 mm × 49 mm |
| Weight | ≈470 g (including battery) |
| Battery | 2 × R6P (3 V) cells |
| Power Consumption (sleep mode) | ≈5 µA |
The meter can measure AC current up to 2000 A.
Continuous measurement at 1500 A is limited to 5 minutes.
It complies with IEC 61010 safety specifications (CAT III 600 V, CAT II 1000 V).
