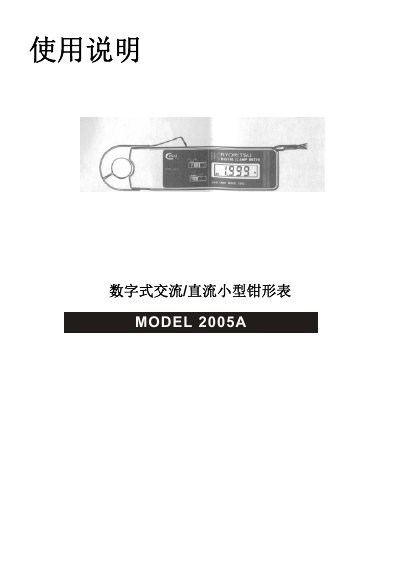

The document is the user manual for the digital AC/DC mini clamp meter MODEL 2005A. It includes safety precautions, features, technical specifications, instrument structure, measurement methods, battery replacement, and optional accessories.
This manual covers safety precautions, proper handling, and measurement procedures for the Kyoritsu 2005A digital clamp meter. It explains the instrument’s structure, battery replacement, data‑hold function, and how to select the appropriate current range.
Technical specifications, including measurement ranges, accuracy, display details, and environmental limits, are listed along with optional 8004 and 8008 clamp current converters that extend the meter’s capabilities. This manual is written in Chinese.
| AC current range | 2 A (0‑1.999 A) |
|---|---|
| Maximum AC current range | 200 A (0‑199.9 A) |
| Display | 3½‑digit LCD, max reading 1999 |
| Battery life | ≈ 300 hours continuous use |
| Weight | ≈ 159 g (including battery) |
| Jaw opening size | ≈ 19 mm |
The meter can measure up to 200 A (0‑199.9 A) with an accuracy of +2.0 % + 8 digits.
Remove the rear‑cover screws, slide off the battery compartment cover, replace the two 1.5 V AA cells, then re‑attach the cover and tighten the screws.
No, the meter must not be used to measure AC voltage higher than 600 V.
