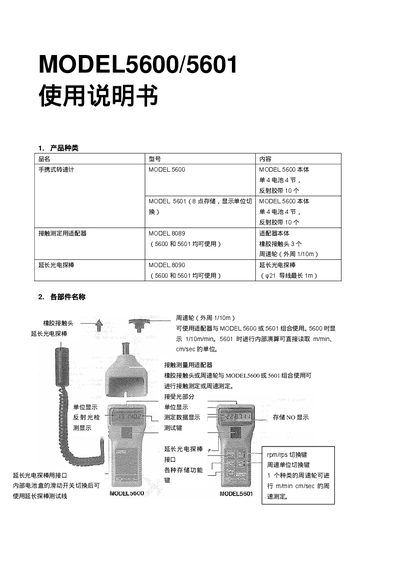

User manual for Kyoritsu MODEL5600 and MODEL5601 handheld tachometers, covering non-contact and contact measurement methods, unit settings, and specifications.
This document is the user manual for the Kyoritsu MODEL5600 and MODEL5601 handheld tachometers. It details the product components, preparation steps for battery installation and accessories, and instructions for both non-contact (reflective tape) and contact measurement modes. The manual also explains how to use the 8-point storage function and unit switching features specific to the MODEL5601. This manual is written in Chinese.
| Measurement Range | 30.0~30000.0rpm |
|---|---|
| Resolution | 0.1rpm |
| Accuracy | +0.01%+1dgt |
| Detection Distance | 50~300mm |
| Power Source | Alkaline batteries single D, 4 cells |
| Operating Temperature | 5~40*C |
| Dimensions | 122x58x28mm |
| Weight | 140g |
The device can measure continuously for 20 hours on 4 single D alkaline batteries.
The measurement range is 30.0 to 30000.0 rpm.
