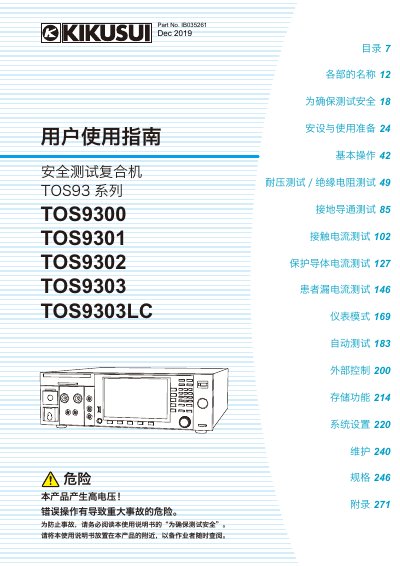

User guide for Kikusui TOS93 safety‑test composite machine covering operation, settings, and safety procedures.
The Kikusui TOS93 Series is a safety‑test composite machine that performs multiple electrical safety tests such as high‑voltage, insulation resistance, ground continuity, and leakage current. The guide provides safety information, installation steps, basic operation, and detailed test procedures for models TOS9300, TOS9301, TOS9302, TOS9303 and TOS9303LC.
The manual also describes system settings, external control options, storage functions, maintenance tasks, and full technical specifications, including supported standards (IEC, EN, BS, VDE, UL, CSA, GB, JIS) and interface options (LAN, USB, RS‑232C).
| Power plug types | NEMA5-15, CEE777, GB1002 |
|---|---|
| Rated input voltage / current | 125 Vac/10 A (NEMA5-15), 250 Vac/10 A (CEE777, GB1002) |
| Maximum ground‑continuity test current | 40 A (AC/DSC) – models TOS9302, TOS9303, TOS9303LC |
| Standard interfaces | LAN, USB, RS‑232C |
| Display | Color LCD screen |
The unit can be supplied with NEMA5‑15, CEE777, or GB1002 plugs, rated 125 Vac/10 A or 250 Vac/10 A.
TOS9303LC supports ACW, DCW, IR, EC, and LC tests, covering high‑voltage, DC voltage, insulation resistance, ground continuity, and leakage current.
All models include LAN, USB, and RS‑232C ports that comply with the LXI standard.
