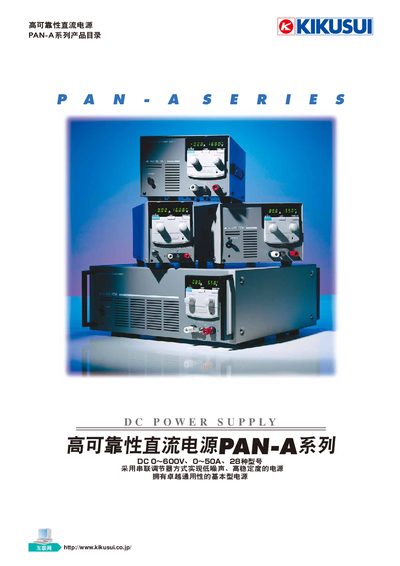

The PAN-A series DC power supply uses a series regulator to achieve low noise and high stability. It has an excellent general-purpose basic power supply
The PAN‑A series from Kikusui offers high‑reliability, low‑noise, high‑stability DC power supplies ranging from 16 V/10 A up to 600 V/2 A. The manual describes the front and rear panel functions, safety protections such as over‑voltage, over‑current and over‑temperature, and the various control modes including remote voltage/resistance control and GPIB/RS‑232C interfaces.
It also covers practical topics like parallel and series operation of identical units, recommended wiring for high‑current loads, cabinet‑mounting dimensions, and a full product‑by‑product specification table. Pricing and part numbers for each model are listed at the end of the document. This manual is written in Chinese.
| Output voltage range (PAN16‑10A) | 0–16 V |
|---|---|
| Output current range (PAN16‑10A) | 0–10 A |
| Constant‑voltage temperature coefficient | 100 ppm/°C (standard) |
When an over‑voltage condition occurs, the OVP circuit disconnects the output within 50 ms to protect the load.
Remote control is possible via external voltage or resistance signals, GPIB or RS‑232C interfaces using the PIA4800 series controllers.
