The manual explains safety, installation, operation, external control, system settings, remote control, maintenance and technical specifications for the…
The BIM1000 series battery internal resistance tester from Kikusui provides high‑speed, high‑accuracy measurement of battery internal resistance and voltage up to 1 000 V. It supports external control via SIGNAL I/O, RS‑232C and USB interfaces and can store up to 500 measurement logs.

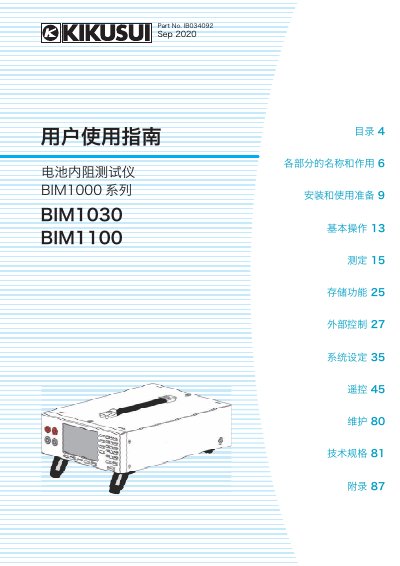

The user manual covers product overview, safety and usage precautions, component functions, installation and preparation, basic operation, measurement procedures, storage functions, external control settings, system configuration, remote control commands, maintenance, technical specifications and appendices. This manual is written in Chinese.
| Maximum measurement voltage (BIM1030) | 300 V |
|---|---|
| Maximum measurement voltage (BIM1100) | 1 000 V |
| Resolution (6 V range) | 10 µV |
| Resolution (60 V range) | 100 µV |
| Resolution (300 V range) | 1 mV |
| Resolution (1 000 V range) | 10 mV |
| Accuracy | ±(0.01 % of reading + 3 digit) |
| Temperature coefficient | ±(0.001 % of reading + 0.3 digit)/℃ |
| Pre‑heat time | 30 min |
| Operating temperature range | 18 °C – 28 °C |
| Storage temperature range | -10 °C – 60 °C |
| Maximum stored measurement logs | 500 groups |
The BIM1100 can measure up to 1 000 V.
The device can store up to 500 groups of resistance and voltage measurement logs.
The tester includes a SIGNAL I/O connector, an RS‑232C connector, and a USB connector for external control.
A pre‑heat time of at least 30 minutes is required before measurement.
