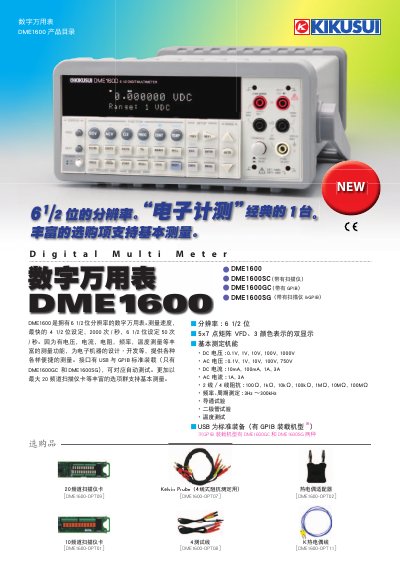

This document is the instruction manual for DME1600, which mainly introduces the features and characteristics of the product, including the brand, model, function, etc.
The DME1600 series is a 6 ½‑digit digital multimeter offering a wide range of measurement functions, including voltage, current, resistance, frequency, and temperature. This manual describes how to operate the instrument, explains its specifications, and lists the available interfaces.
Key features include high‑speed measurement (up to 2000 readings per second), multiple voltage and current ranges, USB and optional GPIB connectivity, and compliance with international EMC standards. Physical dimensions and connector details are also provided. This manual is written in Japanese.
| Resolution | 6 ½ digits |
|---|---|
| Maximum Measurement Rate | 2000 readings per second |
| DC Current Ranges | 10 mA, 100 mA, 1 A, 3 A |
| AC Current Ranges | 1 A, 3 A |
| Impedance Ranges | 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, 100 MΩ |
| Frequency Measurement Range | 3 Hz – 300 kHz |
| Interface Options | USB (all models), GPIB (GC and SG models only) |
| Dimensions (W × H × D) | 224 mm × 113 mm × 379 mm |
All DME1600 models include a USB interface, and the GC and SG variants also provide a GPIB interface.
The instrument offers a 6 ½‑digit resolution.
It can measure frequencies from 3 Hz up to 300 kHz.
