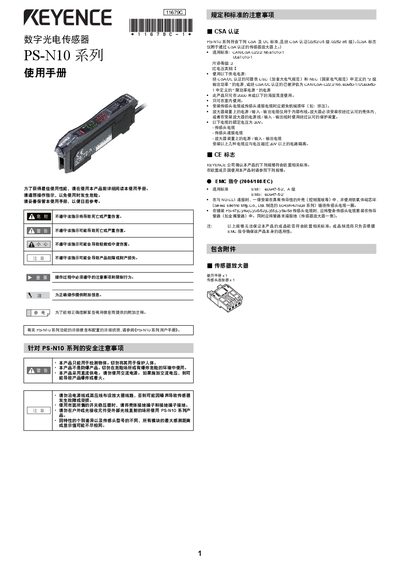

The Keyence PS‑N10 series user manual provides safety instructions, installation steps, calibration, and operation details for the photo‑electric sensor system.
This manual covers safety precautions, installation guidelines, wiring diagrams, and calibration procedures for the PS‑N10 series photo‑electric sensor and its amplifier. It explains how to mount the sensor, connect power and signal lines, and set up the device for various measurement modes.
The document also includes troubleshooting tips, power and output specifications, environmental limits, and warranty information. Users can follow the step‑by‑step instructions to ensure reliable operation in industrial applications. This manual is written in Japanese.
| Maximum Output Power | 860 mW (24 V) |
|---|---|
| Maximum Signal Current | 100 mA |
| Operating Temperature Range | -20 °C to +55 °C |
| Weight | 75 g |
No, the PS‑N10 series is not an explosion‑proof product and must not be used in explosive atmospheres.
Connect the sensor’s grounding terminal and the grounding screw to a proper ground when installing.
The device can operate from –20 °C up to +55 °C.
