This document describes the safety precautions and laser levels of the LV series universal digital laser sensor, as well as the specifications and features of different models of laser diodes.

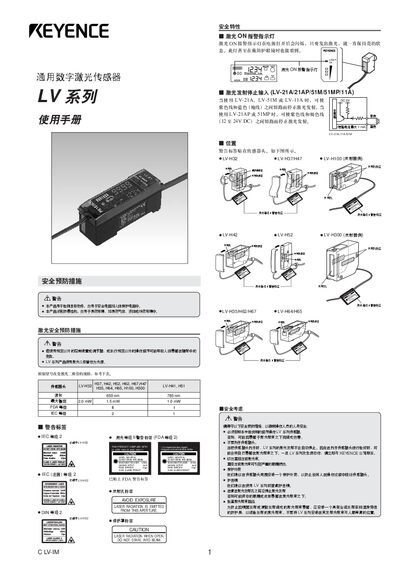

This manual covers essential safety precautions for the LV series laser sensors, including laser‑radiation warnings, required protective equipment, and environmental restrictions. It also details how to install sensor heads, connect amplifiers, and set up the system safely. The document explains operation modes, sensitivity adjustment, wiring diagrams, and troubleshooting tips, and includes a full specification table for all LV sensor models. This manual is written in Chinese.
| Wavelength | 650 nm |
|---|---|
| Maximum Output Power | 1.5 mW |
| IEC Laser Class | 2 |
| Maximum Detection Distance | 300 mm |
| Operating Temperature Range | -10 to +55 °C |
| Power Supply Voltage | 12‑24 V DC |
Short the purple and blue lines (or purple and brown lines for certain models) to stop laser emission.
Use the two‑point tuning method: place the target, press the S button, and fine‑tune with the UP/DOWN buttons.
