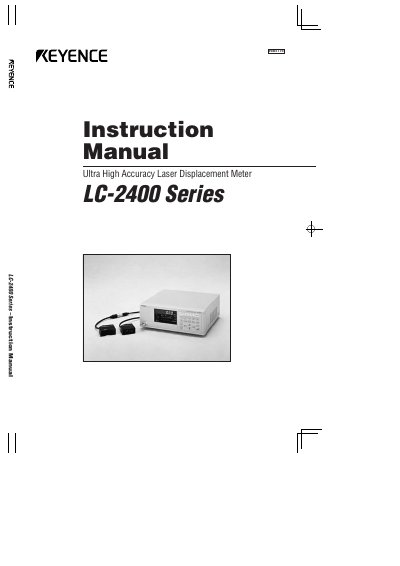

This manual describes how to install and operate the LC-2400 Series laser displacement meter.
This manual describes the LC-2400 Series laser displacement meter, including safety precautions, package contents, and system configuration. It explains the functions of the controller, display unit, sensor heads, and optional boards, and provides detailed wiring and grounding instructions.
The document also covers how to set measurement parameters, perform calibrations, and use external I/O interfaces. A full specifications table and troubleshooting guide are included to help users achieve accurate measurements and maintain the instrument.
| Measuring range | ±0.2 mm to ±8 mm depending on model |
|---|---|
| Operating distance | 10 mm – 50 mm depending on model |
| Light source | Visible red semiconductor laser, max output 1.8 mW, pulse 10 µs |
| Wavelength | 670 nm |
| Sampling frequency | 50 kHz |
| Power supply voltage | 100 V–240 V AC ±10 % (50/60 Hz) |
| Weight | Sensor head ≈500 g (≈250 g for LC‑2400W), controller ≈6.8 kg |
The series offers four sensor head models: LC‑2420, LC‑2430, LC‑2440, and LC‑2450.
