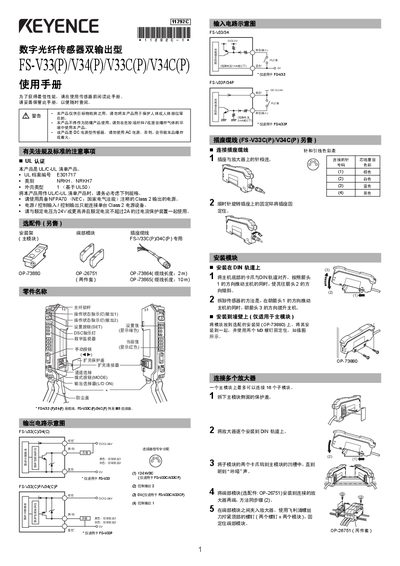

FS-V33(P)/V34(P)/V33C(P)/V34C(P) digital optical fiber sensor dual output type user manual, introduces the use of the product, installation method, precautions and other content.
This manual covers safety warnings, UL certification requirements, and recommended power supply specifications for the FS‑V33/34 series sensors. It explains how to install the modules on DIN rails, connect optional accessories, and configure basic and advanced settings such as power modes, calibration methods, and display options.
Detailed sections describe channel selection, counting functions, alarm output, and how to reset peak/valley values. The final pages list technical specifications, warranty information, and contact details for Keyence support. This manual is written in Chinese.
| Power supply voltage | 12‑24 VDC |
|---|---|
| Maximum output current | 100 mA |
| Response time (SUPER mode) | 1 ms |
| Operating temperature range | -10 °C to +55 °C |
| Weight (module with cable) | ≈80 g |
No, the product is not approved for use as an explosion‑proof device.
Up to 16 modules may be connected, with temperature limits adjusted for larger groups.
