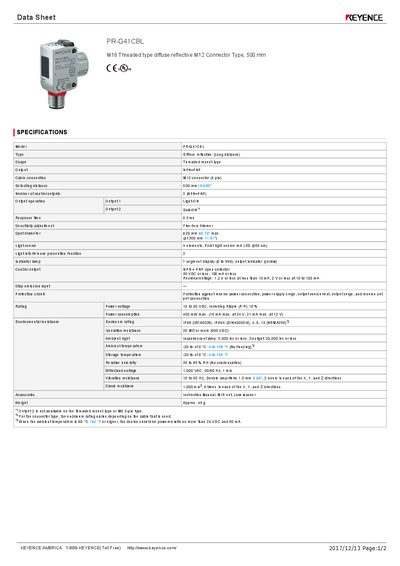

The KEYENCE PR‑G41CBL is a threaded‑mount diffuse reflective sensor with a 500 mm detection range and detailed specifications.
The PR‑G41CBL is a long‑distance diffuse reflective sensor featuring a threaded mount and an M12 (4‑pin) connector. It provides both NPN and PNP open‑collector outputs, with selectable Light‑ON and Dark‑ON functions, and includes a five‑turn sensitivity trimmer and a 7‑segment display for output status.
The sensor is rated IP68/IP69K for harsh environments, operates from 10 to 30 VDC, and consumes up to 450 mW. It tolerates temperatures from –20 °C to +70 °C, vibration up to 55 Hz with 1.5 mm double amplitude, and shock up to 1,000 m/s². Accessories include an instruction manual, M18 nut, and lock washer.
| Detecting distance | 500 mm |
|---|---|
| Output type | NPN + PNP |
| Connector | M12 (4‑pin) |
| Response time | 0.5 ms |
| Spot diameter | ø20 mm |
| Light source | 4 red LED elements (650 nm) |
| Power voltage | 10 to 30 VDC |
| Power consumption | 450 mW max. |
| Enclosure rating | IP68, IP69K |
| Ambient temperature range | -20 to +70 °C |
| Vibration resistance | 10 to 55 Hz, double amplitude 1.5 mm |
| Shock resistance | 1,000 m/s² |
| Weight | Approx. 45 g |
The sensor can detect objects up to 500 mm away.
It provides both NPN and PNP open‑collector outputs.
The enclosure is rated IP68 and IP69K.
It operates from 10 VDC to 30 VDC.
