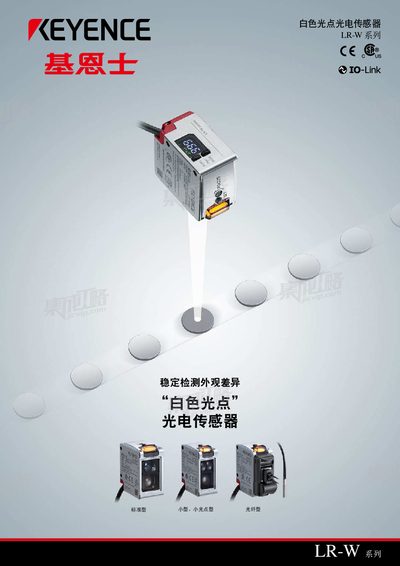

The Keyence LR‑W Series white‑spot photoelectric sensor detects color differences with a white LED and custom receiver, offering a 500,000× dynamic range…
The LR‑W Series uses a white LED light source combined with a custom light‑receiving element to capture color information across the entire visible spectrum. This design enables stable detection of appearance differences even when the target is tilted or at varying distances.
The series includes standard, small, and fiber types (e.g., LR‑W500, LR‑W70, LR‑WF10) with compact dimensions, IP65/IP67 housing, and a detection range of 30‑500 mm. Power consumption is under 1.48 W with a supply voltage of 11‑25 V DC, and the sensor provides digital display and indicator LEDs for easy status monitoring. This manual is written in Chinese.
| Detection range | 30 – 500 mm |
|---|---|
| Dynamic range | 500,000 times |
| IP protection | IP65 (some models IP67) |
| Supply voltage | 11 – 25 V DC |
| Power consumption | < 1.48 W |
| Mounting distance | 25.4 mm |
| Weight (with connector) | ≈ 65 g |
It can detect objects from 30 mm up to 500 mm away.
The sensor uses a low‑intensity white LED together with a custom light‑receiving element, providing a dynamic range of about 500,000 times.
The housing is rated IP65, and some models are rated IP67.
The sensor operates on 11 V to 25 V DC.
