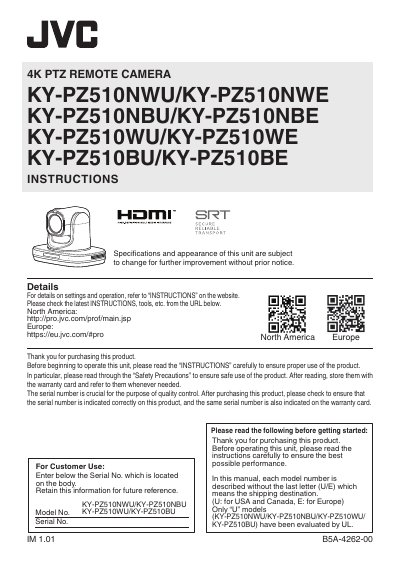

The manual provides safety, installation, operation instructions and specifications for the JVC KY‑PZ510 series 4K PTZ remote camera.
This user manual covers important safety precautions, proper installation steps, and operating guidelines for the JVC 4K PTZ Remote Camera. It explains how to connect power, mount the unit safely, and use the remote control and camera functions.
The document also lists technical specifications such as power options, dimensions, viewing angles, rotation ranges, and preset capacity, as well as details on terminals, lenses, and software licensing.
| Power | DC 12 V (when an AC adapter is used) / PoE+ |
|---|---|
| Current consumption | 0.95 A (AC adapter) / 0.25 A (PoE+) |
| Mass | Approx. 2.0 kg |
| Operating temperature | 0 °C to 40 °C |
| Dimensions (W × H × D) | 223.0 mm × 166.4 mm × 163.0 mm |
| Horizontal viewing angle | 80.0° to 8.0° |
| Vertical viewing angle | 50.5° to 4.5° |
| Number of presets | 255 |
The camera can be powered by a DC 12 V supply using the supplied AC adapter or via PoE+ (IEEE 802.3at) over an Ethernet cable.
The camera can store up to 255 preset positions.
The camera is rated for operation between 0 °C and 40 °C.
