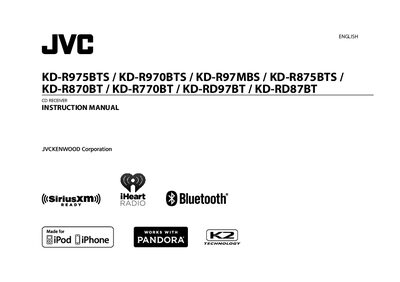

The JVC KD‑R975BTS CD receiver manual provides setup, operation, specifications and installation instructions for the in‑dash audio unit.
This manual covers everything you need to get the JVC KD‑R975BTS CD receiver up and running, from initial safety warnings and basic controls to detailed operation of radio, CD, USB, iPod, Android, Pandora, iHeartRadio, Bluetooth and auxiliary inputs. It also includes troubleshooting tips, maintenance guidance, and a full specifications table.
Installation instructions show how to safely wire and mount the unit in a vehicle, including battery disconnect, mounting sleeve removal, wiring harness connections, and final testing of vehicle functions.
| FM Frequency Range | 87.9 MHz — 107.9 MHz (200 kHz step) |
|---|---|
| AM Frequency Range | 530 kHz — 1 700 kHz (10 kHz step) |
| Laser Diode Type | GaAIAs |
| Maximum Output Power | 50 W × 4 (or 50 W × 2 + 50 W × 1 with subwoofer) |
| Operating Voltage | 10.5 V — 16 V (typical 14.4 V) |
| Bluetooth Version | 2.1+EDR / 3.0 |
Press and hold the knob, turn it to select CLOCK, then CLOCK SET, adjust hour and minute, choose 24‑hour or 12‑hour mode, and press the knob to confirm.
Replace the lithium battery with the same type, avoid exposing it to heat, and keep it in its original packaging when not in use.
Select the Bluetooth source, turn on Bluetooth on your device, and pair using the unit’s Bluetooth 2.1+EDR/3.0 profile.
This manual explains 1 error code. Open a code for its meaning, causes and what to do:
