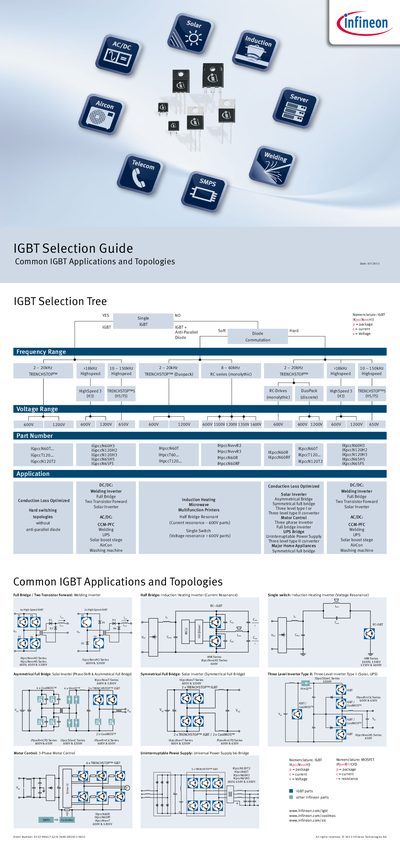

Infineon's IGBT Selection Guide provides application topologies, voltage ranges and part specifications for many IGBT series.
The guide helps designers choose the right IGBT for a given power‑electronics application. It lists common topologies such as single IGBT, half‑bridge, full‑bridge, three‑level and resonant converters, and shows which IGBT series are suited for each.
Detailed tables give the key electrical parameters for each part, including maximum collector‑emitter voltage, switching frequency range, package type and whether the device uses hard or soft switching. The document also includes nomenclature, part‑number conventions and links to related Infineon product pages.
| IKP04N60T | VCE(max) 600 V, Switching 2‑20 kHz, TO‑220, Hard switching |
|---|---|
| IKW20N60T | VCE(max) 600 V, Switching 2‑20 kHz, TO‑247, Hard switching |
| IKD04N60R | VCE(max) 600 V, Switching 2‑4 Hz, TO‑252, Hard switching (RC Drives) |
Series such as TRENCHSTOP™ HighSpeed (e.g., IKB06N60T, IKB10N60T) are marked as high‑speed devices.
