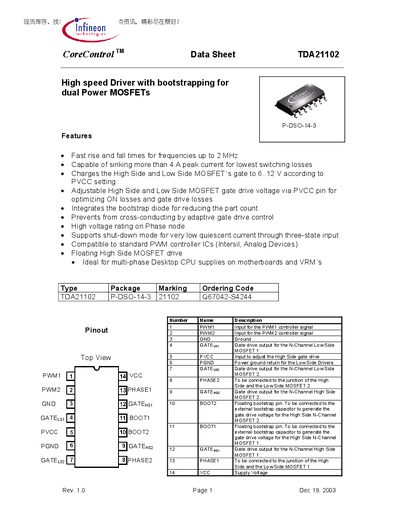

This document is a data sheet for CoreControl TM TDA21102, which describes the features and characteristics of the product, such as input signals, ground, drive outputs, power supply, etc.
The TDA21102 is a high‑speed dual driver designed to drive N‑Channel low‑side and high‑side MOSFETs in half‑bridge configurations. It offers fast rise and fall times, adaptive gate‑drive control, and built‑in protection features for efficient operation in DC‑DC converters, motor drives, and Class‑D audio applications.
Key specifications include a supply voltage range of 10.8‑13.2 V for VCC, PWM input frequencies up to 2 MHz, and the ability to sink more than 4 A peak current. The device is supplied in a 14‑lead P‑DSO package with integrated bootstrap diodes and detailed pinout for easy PCB layout.
